Organic Reagents

By James Ashenhurst

Reagent Friday: Sodium Periodate

Last updated: February 21st, 2020 |

Sodium Periodate, NaIO4 As A Reagent In Organic Chemistry

In a blatant plug for the Reagent Guide and the Reagents App for iPhone, each Friday  I profile a different reagent that is commonly encountered in Org 1/ Org 2.

structure-of-sodium-periodate-naio4

In organic chemistry, sometimes you need to build molecules up. Other times, you need to break molecules down. Ozone, which we talked about earlier, is a really useful reagent for that. Here’s another one, although it’s a little more obscure.

Sodium Periodate (NaIO4) Cleaves 1,2-Diols (“Vicinal” Diols) To Aldehydes And Ketones

Sodium periodate (NaIO4) breaks apart 1,2-diols (“vicinal” diols) to form aldehydes and ketones. In this respect it’s the same as periodic acid (HIO4) and lead tetra-acetate [Pb(OAc)4].

naio4-for-cleavage-of-diols-to-give-aldehydes-and-ketones

Notice what’s happening to NaIO4 here – it’s becoming reduced from iodine(VII) to iodine(V). In the process we’re cleaving a C-C bond and forming two C-O π bonds. Comes in handy sometimes, when you want to break apart an alkene and form aldehydes and ketones.

Cleavage Of Vicinal Diols By Sodium Periodate (NaIO4) –  The Mechanism

The first step in cleavage of vicinal diols by NaIO4 is the direct attachment of the alcohols to the iodine. This occurs through two successive attacks of the iodine by lone pairs on each of the hydroxyl groups followed by a proton transfer.

In the second step, what happens is a kind of reverse cycloaddition (similar to what happens when an ozonide breaks down). This is a somewhat simplified version of the mechanism (skipping over the proton transfer). The key part here is the third diagram, where the cyclic iodate ester breaks down to give the ketone and aldehyde.

mechanism-of-naio4-cleavage-of-diols-to-give-carbonyl-compounds

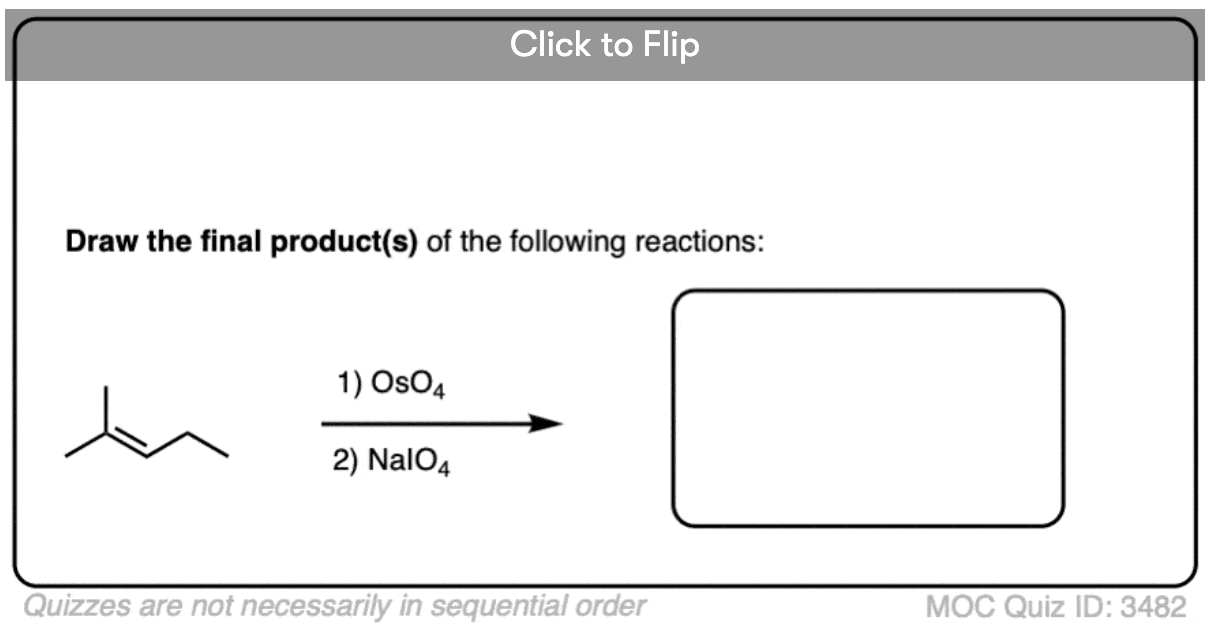

And there you go: aldehydes or ketones, depending on whether you’re breaking down secondary or tertiary alcohols (primary alcohols become formaldehyde). So this actually gives you a second way to cleave double bonds to alkenes/ketones besides ozone. You can take an alkene, treat it with osmium tetroxide (OsO4) first to make the diol, and then NaIO4 it. This is, incidentally, sometimes called “Johnson-Lemieux cleavage“. Obscure organic chemistry named reaction of the day!

P.S. You can read about the chemistry of NaIO4 and more than 80 other reagents in undergraduate organic chemistry in the “Organic Chemistry Reagent Guide”, available here as a downloadable PDF. The Reagents App is also available for iPhone, click on the icon below!

(Advanced) References and Further Reading

The most common oxidizing agents used for this reaction are KMnO4, periodic acid (Malaprade reaction), and Pb(OAc)4 (Criegee reaction).

  1. Malaprade, Bull. Soc. Chim. Fr. 3, 1, 833 1934
    First paper on the oxidative cleavage of 1,2-diols, now also known as the Malaprade oxidation.
  2. Chemoselective hydrolysis of terminal isopropylidene acetals and subsequent glycol cleavage by periodic acid in one pot
    Wenlian Wu and Yulin Wu
    The Journal of Organic Chemistry 1993, 58 (13), 3586-3588
    DOI: 10.1021/jo00065a025
    This can be considered a tandem or domino reaction – periodic acid unmasking a diol from an acetal and then oxidatively cleaving it in one pot.
  3. Eine oxydative Spaltung von Glykolen (II. Mitteil. über Oxydationen mit Blei(IV)‐salzen)
    Rudolf Criegee
    Ber. 1931, 64 (2), 260-266
    DOI: 10.1002/cber.19310640212
    The first paper by on the oxidation of 1,2-diols with Pb(IV) salts, by Rudolf Criegee.
  4. Direct Titration of cis-Glycols with Lead Tetraacetate
    E. Reeves
    Analytical Chemistry 1949, 21 (6), 751-751
    DOI: 10.1021/ac60030a035
    This reaction can also be used for the analytical quantification of 1,2-diols, as this paper describes.
  5. Lead Tetraacetate Oxidations in the Sugar Group. XI. The Oxidation of Sucrose and Preparation of Glycerol and Glycol
    Robert C. Hockett and Morris Zief
    Journal of the American Chemical Society 1950, 72 (5), 2130-2132
    DOI: 10.1021/ja01161a073
    Pb(OAc)4 is commonly used as an oxidant in carbohydrate chemistry, as this paper describes. It is used to cleave 1,2-glycols and differentiate between different kinds of glycol groups.
  6. (1’R)-(−)-2,4-O-ETHYLIDENE-D-ERYTHROSE AND ETHYL (E)-(−)-4,6-O-ETHYLIDENE-(4S,5R,1’R)-4,5,6-TRIHYDROXY-2-HEXENOATE
     Fengler-Veith, O. Schwardt, U. Kautz, B. Krämer, and V. Jäger
    Org. Synth. 2002, 78, 123
    DOI:     10.15227/orgsyn.078.0123
    A procedure in Organic Syntheses using NaIO4 oxidation in carbohydrate chemistry.
00 General Chemistry Review
01 Bonding, Structure, and Resonance
02 Acid Base Reactions
03 Alkanes and Nomenclature
04 Conformations and Cycloalkanes
05 A Primer On Organic Reactions
06 Free Radical Reactions
07 Stereochemistry and Chirality
08 Substitution Reactions
09 Elimination Reactions
10 Rearrangements
11 SN1/SN2/E1/E2 Decision
12 Alkene Reactions
13 Alkyne Reactions
14 Alcohols, Epoxides and Ethers
15 Organometallics
16 Spectroscopy
17 Dienes and MO Theory
18 Aromaticity
19 Reactions of Aromatic Molecules
20 Aldehydes and Ketones
21 Carboxylic Acid Derivatives
22 Enols and Enolates
23 Amines
24 Carbohydrates
25 Fun and Miscellaneous
26 Organic Chemistry Tips and Tricks
27 Case Studies of Successful O-Chem Students

Comments

Comment section

32 thoughts on “Reagent Friday: Sodium Periodate”

  1. actually my question was will the nai04 give same answer with ch3-o-ch2-ch2-oh?

    Reply

  2. Sir, Can you also tell me what are the conditions (pressure and temperature) at which this reaction will be taking place.

    Reply
  4. Pingback: Top 14 hio4 đọc là gì mới nhất năm 2022 - tophoidap

  6. Can periodic acid cleave trans diol in cyclic compound. Jerry and and march says that it can but how is it possible with the cyclic intermediate?

    Reply

  7. Please propose mechanism for the below convertion
    cyclohexane-1,3-dione react with Sodium periodate (NaIO4) in water(H2O) to farnish glutaric acid.

    Reply

  8. Hey what if beta amino alchohols are cleaved with this… what are the products formed… please tell me

    Reply

  10. So a general statement that can be made is:
    Primary alcohols will give formaldehyde on reaction with Periodic acid
    Secondary alcohols will give corresponding aldehydes
    And tertiary alcohols will give a ketone.
    Am I right? Pls help me out

    Reply

  11. That is really a great explaination sir. But is it only possible in the case of vicinal diols? What if more than more than two OH- groups are present side be side? What if there is =O group in between two OH groups?

    Reply

  12. Thank you sir for this explanation. I had a doubt in a question which is as follows:

    2(CH3)C=CH-C.3(CH3) ——— ( NaIO4/KMnO4 ) —-> Products?

    What I thought was that first glycols would be formed by the presence of KMnO4 and then due to NaIO4 as you explained they would converted to aldehydes. But I checked the answer and one of the products was aldehyde but other was carboxylic acid. Can you please explain why and what happens in this reaction. Thank you.

    The answer was: Acetone + 3(CH3)C-COOH .
    [ Note: All the coefficients are at subscript position in front of that. ]

    Reply

    1. This is dihydroxylation followed by oxidative cleavage. KMnO4 is responsible for oxidation of the aldehyde to a carboxylic acid. The other product is a ketone.

      Reply

  13. Alternately, why can’t IO4- be used to directly form glycols from alkenes, which are then cleaved subsequently by it? Its structure is so similar to OsO4, why doesn’t it form the glycol in the first step as well?

    Reply

  17. In the mechanism, one of the oxygens (double) bonded to iodine is missing in the 2nd and 3rd structure, I think. Otherwise, truly great work.

    Reply

  18. I love Reagent Friday!

    Just throwin’ this out there but have you considered Reagent Friday tshirts?? The reagent on the front w/ the mechanism on the back, or vice versa, or however you wanna do it- have a feeling they would sell. I mean how could a good organic chemist not look forward to wearing their Reagent Friday tshirt every Friday?

    Reply

    1. Or maybe a student could wear it every day and cheat on quizzes with mechanism problems by looking on the front of their shirt; heh, heh, heh. Not like I would do that.

      Reply
