Many ketones and aldehydes have an alter-ego “enol” form with completely different chemical properties than the familiar “keto” form.  In this article we’ll explore the structure and properties of this “enol” form, go through the mechanism for the keto-enol transformation, and describe some of the key factors that can affect the keto-enol equilibrium.

*mostly aldehydes and ketones, although it can occur in other species as well (e.g. acid halides)
NOTE: This is a 2022 update of an older post entitled, “Keto-Enol Tautomerism: Key Points”.

Table of Contents

1. When Ketones Moonlight As Nucleophiles
2. Keto-Enol Tautomerism
3. Examples Of Keto-Enol Tautomerism
4. Properties of Enols
5. Keto-Enol Tautomerism: Mechanisms
6. Four Factors That Affect Keto-Enol Equilibria
7. Factor #1: Substitution
8. Factor #2: Conjugation/Resonance
9. Factor #3: Hydrogen Bonding
10. Factor #4: Aromaticity
11. Revisiting A Weird, “Unketone-like” Reaction
12. Summary And Conclusion
13. Notes
14. Quiz Yourself!
15. (Advanced) References and Further Reading

1. When Ketones Moonlight As Nucleophiles

Reactions of aldehydes and ketones: by this point we’ve pretty much seen ’em all. Right?

I mean, the carbonyl carbon of aldehydes and ketones is an electrophile.  So their reactions all follow the same pattern, more or less.

1. A nucleophile attacks carbon, forming C–Nu and breaking the C-O pi bond to give an alkoxide (O^–) This is nucleophilic addition.
2. Mild acid is added to protonate the alkoxide and form O–H.  [See here: Aldehydes and Ketones – 14 Reactions With The Same Mechanism ]

So that’s all there is to the reactions of aldehydes and ketones. Case closed?

Not quite. This is the article where we discover that most aldehydes and ketones live a double life.

By day, they are respectable electrophiles, undergoing addition with nucleophiles. But by night, maybe when the moon is full, they undergo a transformation into a completely different beast – one with a different structure, properties… and appetites.

Here’s an example of a reaction which doesn’t fit the normal “two-step” pattern.  Treating a ketone with acid and Br₂ gives…. a new C-Br bond next to the carbonyl carbon?

This seems decidedly un-ketone-like.  Recall that Br₂ is electrophilic (remember how it reacts with electron-rich alkenes and aromatic rings).

So what the heck is our “electrophilic” ketone doing cavorting around with another electrophile? And forming bonds at….  a totally different place?

If Br₂ is the electrophile, then what was the nucleophile here?

2. Keto-Enol Tautomerism

A clue to this aberrant chemical behavior is provided not by lycanthropy, but by the fact that many aldehydes and ketones are in equilibrium with a structural isomer known as the enol form (part alkene, part alcohol).

This behavior is known as keto-enol tautomerism.

The keto and enol forms are not resonance forms!   [Note 1 ]  They are structural isomers that can interconvert. This property is called tautomerism. Keto-enol tautomerism is the most commonly-encountered type of tautomerism, although there are others. [Note 2]

That means that the keto and enol forms, if separated, have very different physical and chemical properties, which will become important in a moment. [Note 3]

We’ve actually encountered keto-enol tautomerism before, if only briefly. You may recall that alkynes treated with HgSO₄ and water give an enol intermediate, which then tautomerizes to a ketone. Similarly, alkynes undergo hydroboration-oxidation to give enols which can tautomerize to aldehydes. [See Hydroboration and Oxymercuration of Alkynes]

Your instructor may have glossed over the tautomerism part at the time, saying something like, “you’ll learn more about this in Org 2.” Well, the moment has arrived.

3. Some Examples of Keto-Enol Tautomerism

Here are a few more examples of keto-enol tautomerism.

You might recall that at the very beginning I said that keto-enol tautomerism happens in some aldehydes and ketones. Why “some” but not all? Because it can’t happen in cases where there is no hydrogen on the alpha carbon. [Note 4]

These aldehydes and ketones are known as “non-enolizable” aldehydes and ketones.

4. Properties of Enols

Might this enol form be responsible for those “weird” reactions of aldehydes and ketones we were talking about?

[NARRATOR: You think???  Why else would he be bringing this up?]

A closer look at the enol form may help us to understand some of its properties.

In the enol form,  a lone pair on oxygen is in conjugation with the C-C pi bond. [See post: Conjugation and resonance]

At first glance, we might think that having an electronegative oxygen attached to an alkene might make it more electron-poor, since it’s sucking electron density away through that C–O sigma bond.

However,  we can also draw a resonance form where a lone pair on oxygen attached to the pi-bond can donate a pair of electrons towards the ring, forming a new C–O pi bond.

In the process, the pair of electrons in the C–C pi bond moves over to become a lone pair on the adjacent carbon.

This is known as pi-donation and has the effect of making an attached pi bond more electron-rich and therefore more nucleophilic. [See post: Pi-Donation]

On balance, the pi-donation effect from oxygen tends to be much stronger than the inductive effect arising from electronegativity.

You may recall that OH is a strongly activating group for electrophilic aromatic substitution. [See: Activating and Deactivating Groups] You might even recall drawing resonance forms which show the electron density moving towards the ortho- and para- positions.

If you remember that, I’ve got good news. Enols behave in exactly the same way!

An attached -OH group has the effect of making the carbon adjacent to the C–O bond more electron rich and therefore more nucleophilic!

via GIPHY

This helps to untangle the mystery of why the new C–Br bond was formed on the “alpha carbon” in our example above.  In an enol, the alpha-carbon is strongly nucleophilic!

5. Keto-Enol Tautomerism: Mechanisms

This begs a question. If the keto and enol tautomers aren’t resonance forms, then there must be some process by which they interconvert. So how does this happen?

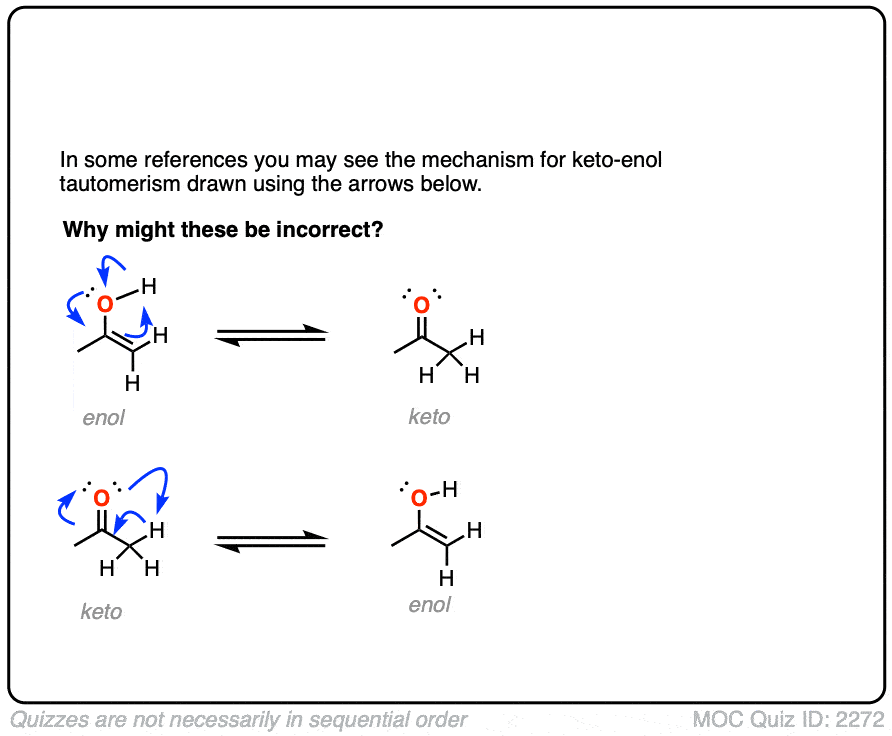

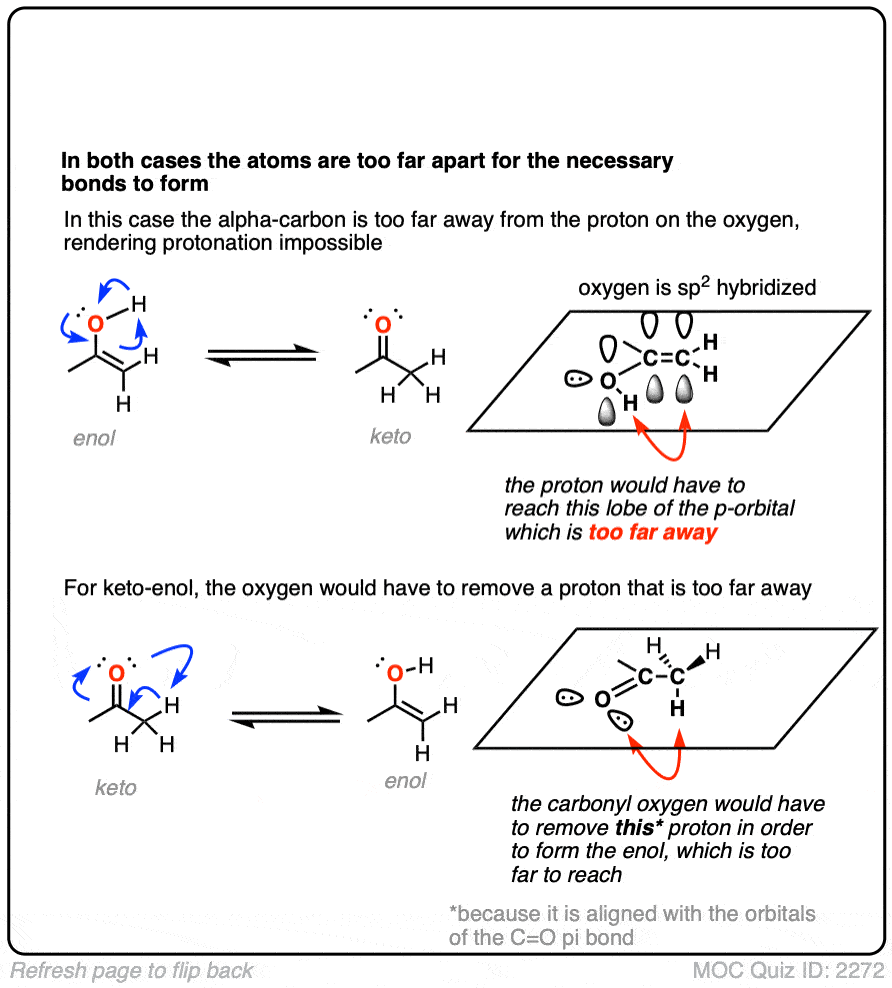

It might be instructive to show how to do it the wrong way first.

Click to Flip

Hold on. It looks so gosh-darn tempting to draw it all up as one concerted process. How can this possibly be wrong?

It’s wrong for the same reason that you can’t scratch your left elbow with your left hand. They are just too far apart to touch.

What’s needed is a “helper” molecule to transport the proton from one part of the molecule to the other. Water serves nicely. [Note 5]

In addition to water, interconversion of keto and enol tautomers is greatly assisted by the presence of acid or base. [Note 6]

In the presence of acid, the carbonyl oxygen is protonated (Step 1, form O-H). Then, in the slow step, the alpha-carbon is deprotonated to give the enol (Step 2, break C-H, form C-C (pi), break C-O (pi). ). This gives us the enol.

For the acid-catalyzed conversion of enol to keto, hover here and an image will pop up or click on this link.

Keto-enol interconversion is also assisted by base. Here, deprotonation of the alpha carbon (Step 1, break C-H, form C-C (pi), break C-O pi) is the slow step, and protonation of the oxygen (Step 2, form O-H) is the fast step.

(The conjugate base of an enol is called an enolate. We’ll have a lot more to say about enolates shortly).

For the reverse process (base-catalyzed conversion of enol to keto) hover here or click on the link.

6. Four Factors That Affect Keto-Enol Equilibria

For most aldehydes and ketones, equilibrium strongly favors the keto form,  often by a factor of 10⁴ or more. This mostly has to do with the difference in bond strengths (C-O pi is a stronger bond than C–C pi , for more details see Note 7 ). The enol form is even less favored for carboxylic acids and esters. [Note 8]

That said, there are at least 4 key factors that can significantly influence the keto: enol ratio. It’s important to know them as they make good exam question material.

They are, in order from weakest to strongest influence:

• substitution –  enols are a type of alkene, and substituted alkenes are more stable
• conjugation – conjugation of the enol pi-bond with a neighboring pi system is stabilizing
• hydrogen bonding – intramolecular hydrogen bonding can stabilize the enol form
• aromaticity – if the enol is part of an aromatic ring, expect the enol form to dominate

Factor #1: Substitution

Remember Zaitsev’s rule? Eliminations tend to favor formation of the more substituted alkene, because they are more thermodynamically stable? [See: Stability of Alkenes]

The same trend applies to enols!

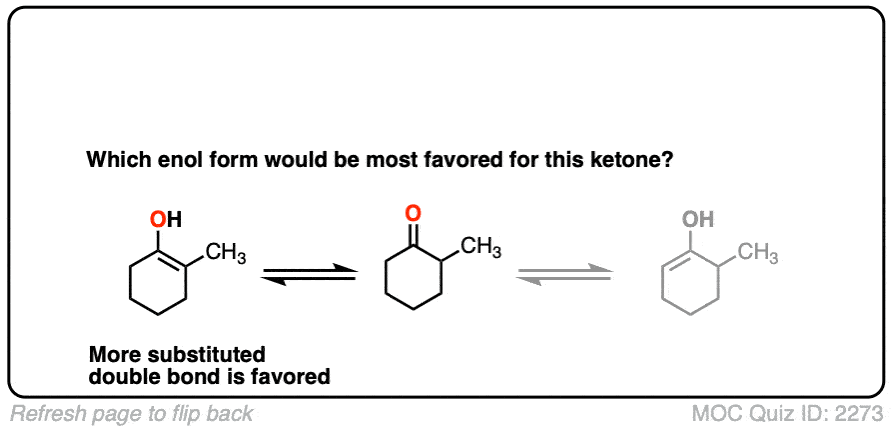

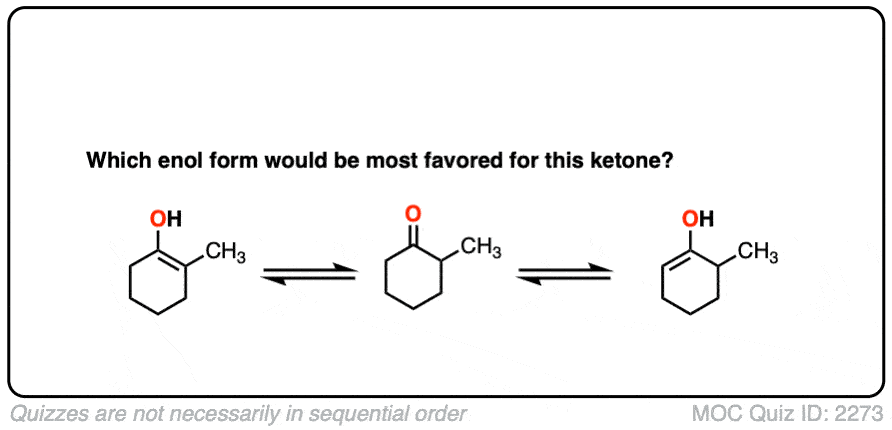

For example, which enol do you think will be favored at equilibrium?

Click to Flip

The more substituted an enol is, the more thermodynamically stable it tends to be. The difference often isn’t huge (1-2 kcal/mol) but recall that even a difference of 1 kcal/mol means an equilibrium ratio of about 80:20. [Calculated here]

(This is actually quite an important trend to be aware of, because you may soon be contrasting kinetic versus thermodynamic enolates.)

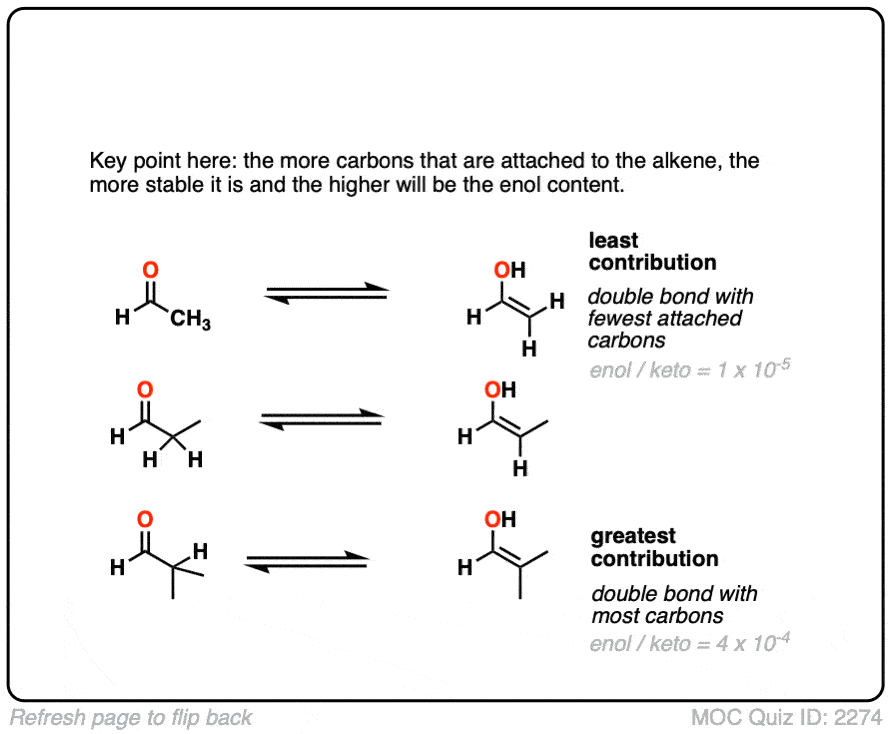

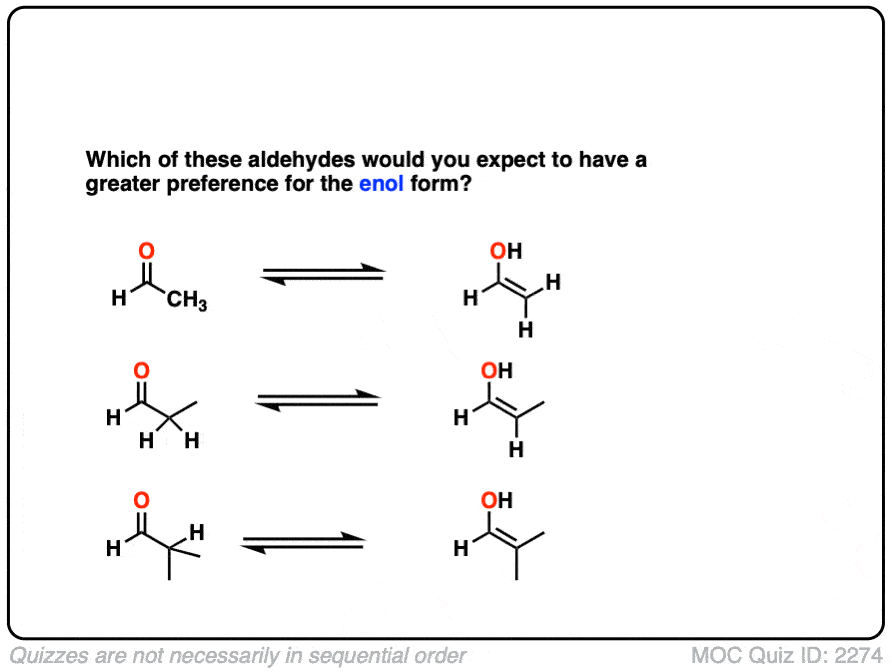

Compare the stability of the following aldehyde enols:

Click to Flip

Factor #2: Conjugation / Resonance

Click to Flip

π bonds are a little like Cheerios in milk: it’s more stable for them to connect together rather than hang out in isolation.

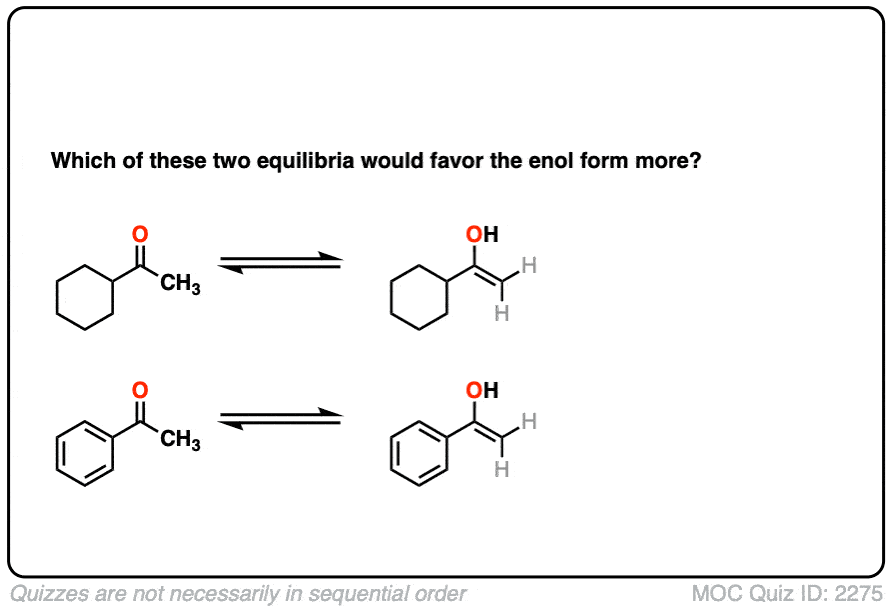

Which leads us to ask:  which of these two ketones will have a greater preference for the enol form?

Click to Flip

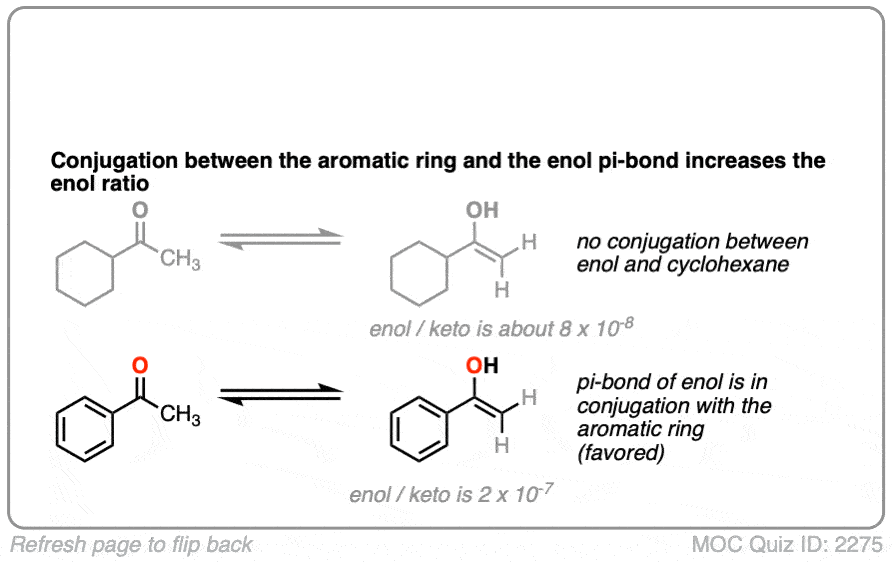

The more favorable enol form will be that which allows conjugation with a neighboring pi system.

Factor #3: Hydrogen Bonding

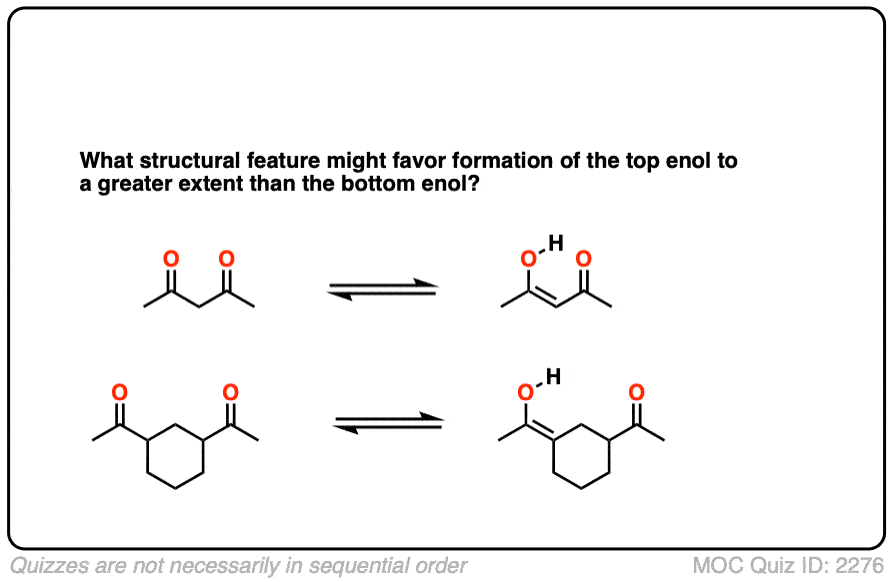

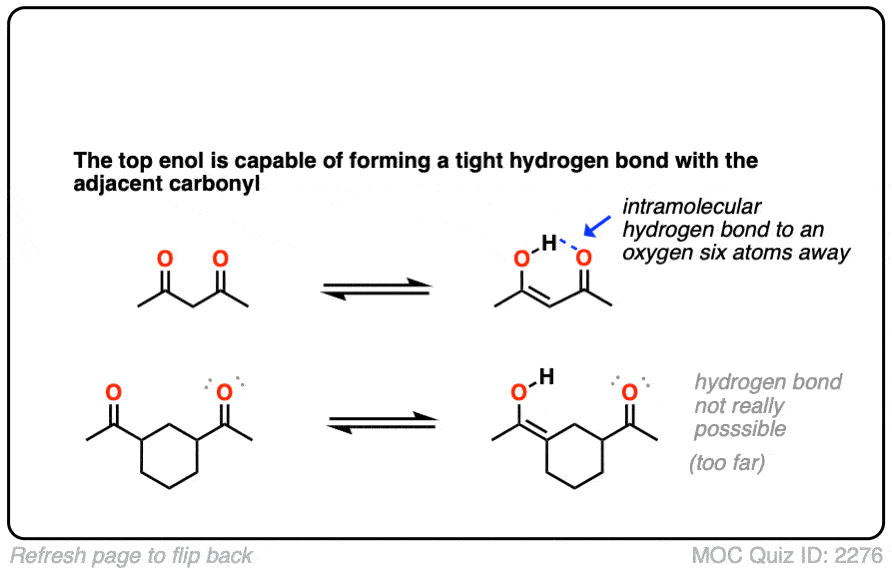

This is an interesting one. Enols have an O-H bond, which is highly polarized; the hydrogen bears a partially positive charge and is capable of hydrogen bonding. If  a Lewis base (e.g. the oxygen of a carbonyl) is present nearby, an intramolecular hydrogen bond can result, which will stabilize the enol form.

Click to Flip

In some cases the proportion of enol form can be equal to or even greater than the amount of keto tautomer in solution.

(An NMR spectrum of 2,4-pentanedione, for example shows about a 1:1 mixture of the keto and enol tautomers) hover for image

[There is some dependence on solvent here. See Note 9]

Factor #4 : Aromaticity

The most powerful driving force to favor an enol tautomer is aromaticity.

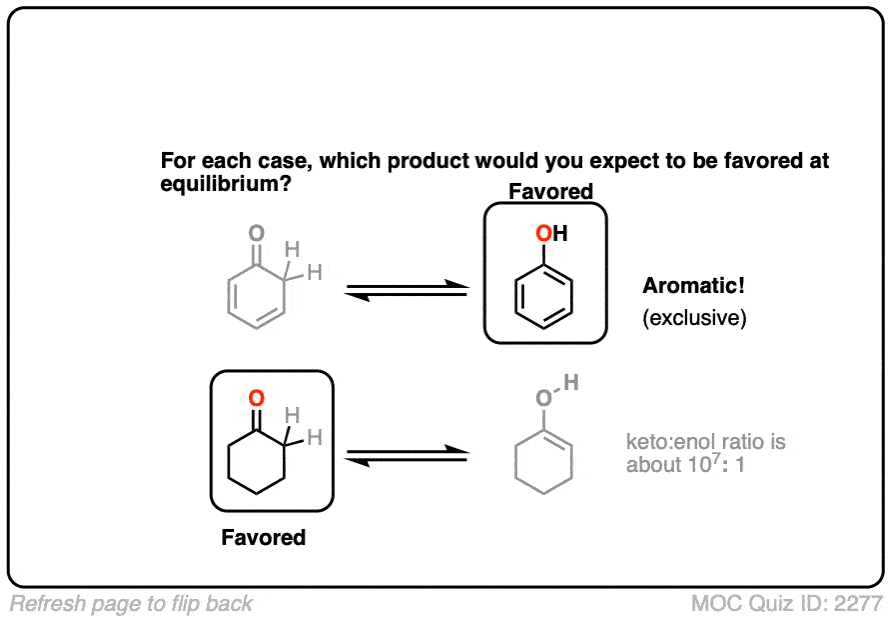

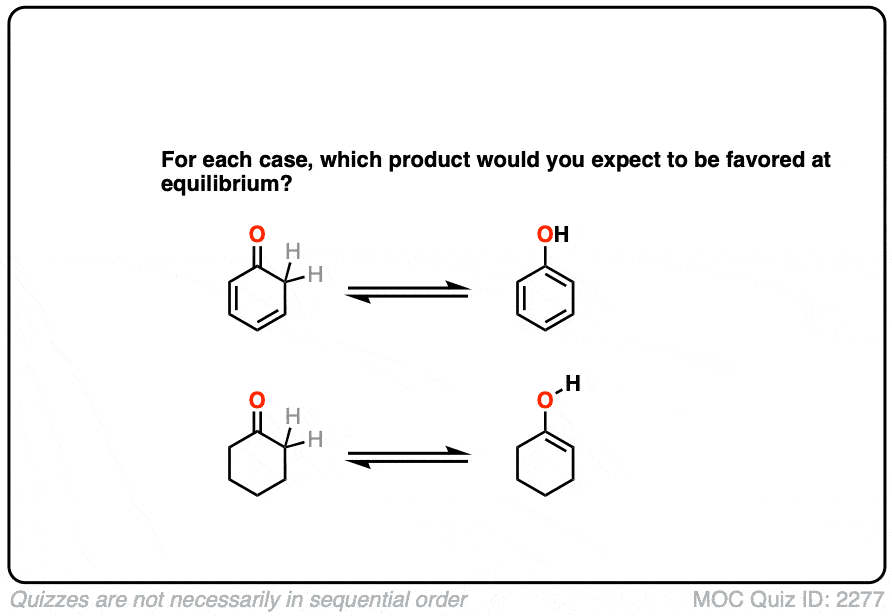

Contrast these two ketones. Which would favor the enol tautomer more?

Click to Flip

Hopefully you can see that the aromaticity of phenol (with its resonance energy of >20 kcal/mol) greatly favors the enol form here. The keto tautomer can’t be detected in solution!

11. Revisiting An “Un-Ketone-Like” Reaction With Br₂

After all we’ve explored, I think we’re ready to go back at this “weird” reaction of a ketone one more time.

How might this reaction work?

We’re adding acid and forming a new bond to an electrophile at the alpha carbon. I think we can safely say that the first step is acid-catalyzed keto-enol tautomerism.

This gives us a nucleophilic enol, which can then react with Br₂ to form a new C-Br bond. Deprotonation then gives the neutral alpha-bromo ketone.

12. Summary and Conclusion

So what have we learned?

• Aldehydes and ketones that have a proton on the alpha carbon can participate in keto-enol tautomerism, where an equilibrium exists between two constitutional isomers – the keto and enol forms. Constitutional isomers that are in equilibrium are called “tautomers”.
• The enol tautomer is nucleophilic on the carbon adjacent to the C-OH bond (the “alpha-carbon”) and undergoes reactions with electrophiles
• Keto-enol tautomerism can be catalyzed with acid or base.
• Generally the keto tautomer is favored at equilibrium.
• Many structural factors that stabilize alkenes  such as substitution, conjugation, and participation in an aromatic ring may also help to stabilize the enol form. Also, the enol tautomer can be stabilized by a neighboring hydrogen bond acceptor (such as a ketone)

Notes

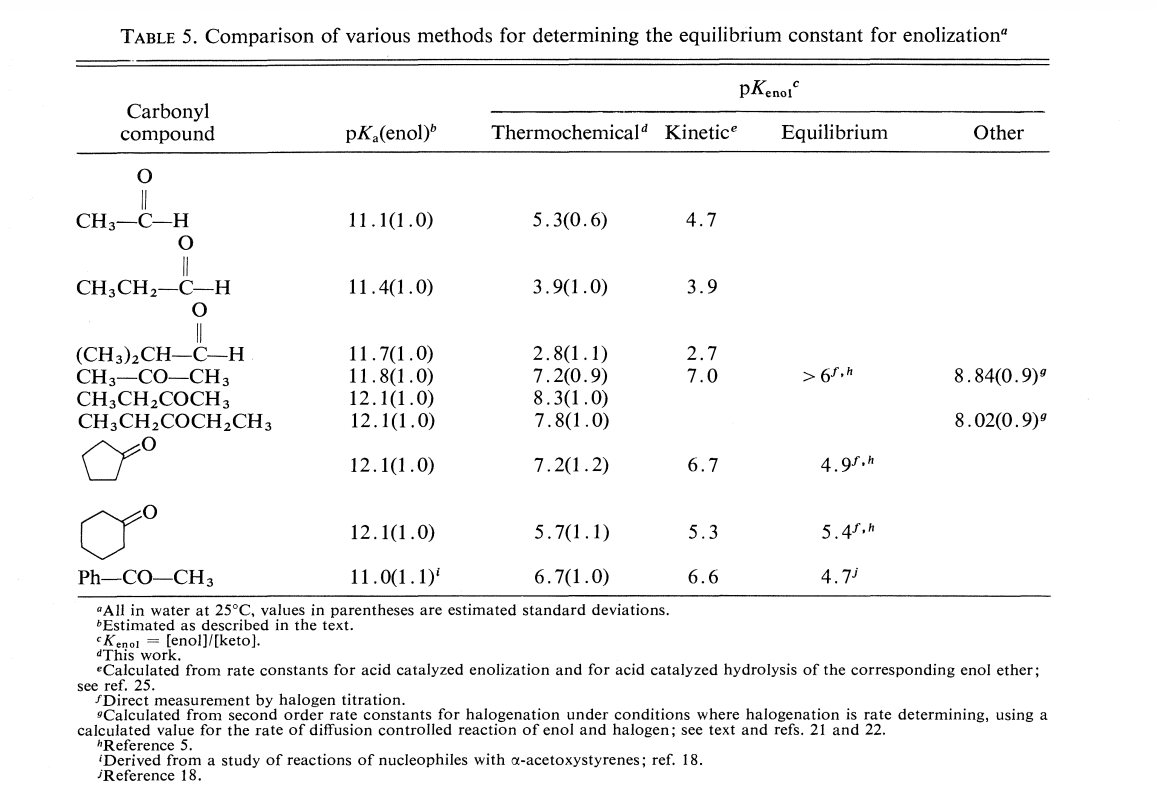

Some representative keto-enol ratios (collected from Carey & Sundberg and March’s Advanced Organic Chemistry)

Note 1 – Recall that resonance forms are not in equilibrium with each other – they are just ways of representing the distribution of pi-electrons in a molecule whose true structure is best thought of as a weighted hybrid of resonance forms. [See: Resonance Structures]

In the transformation of a keto- to an enol- form, a C-H sigma bond and a C-O pi bond breaks, and an O-H sigma bond and C-C pi bond forms. This is another reason why these can’t be resonance forms – recall that we can’t break sigma bonds to interconvert resonance structures.

Note 2 – Keto-enol tautomerism is one of the most prominent types of tautomerism. Ring-chain tautomerism, which often happens in sugars, is another. [See: Ring Chain Tautomerism In Sugars]. A third is valence tautomerism, which occurs in certain molecules that lack a fixed structure.

Note 3 – The keto and enol forms have been separated for certain ketones. The first example was ethyl acetoacetate.

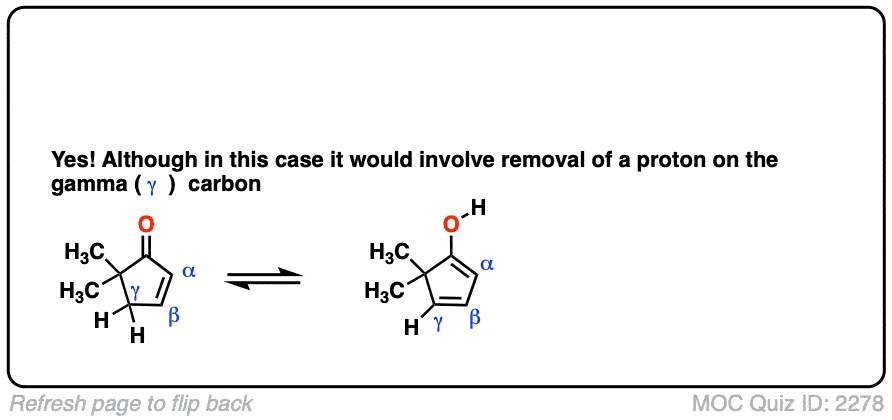

Note 4 – It is possible for certain alpha, beta unsaturated ketones that appear “non-enolizable” to be enolized at the gamma position.

Click to Flip

Note 5- It is possible in certain cases to prepare “pure” enols, uncontaminated with their keto tautomer. In these cases researchers are extremely careful to exclude water, which may act as a “proton shuttle” to interconvert the enol and keto forms.

Note 6 – See Ref 1 for more details on how acid accelerates the rate of keto-enol tautomerism.

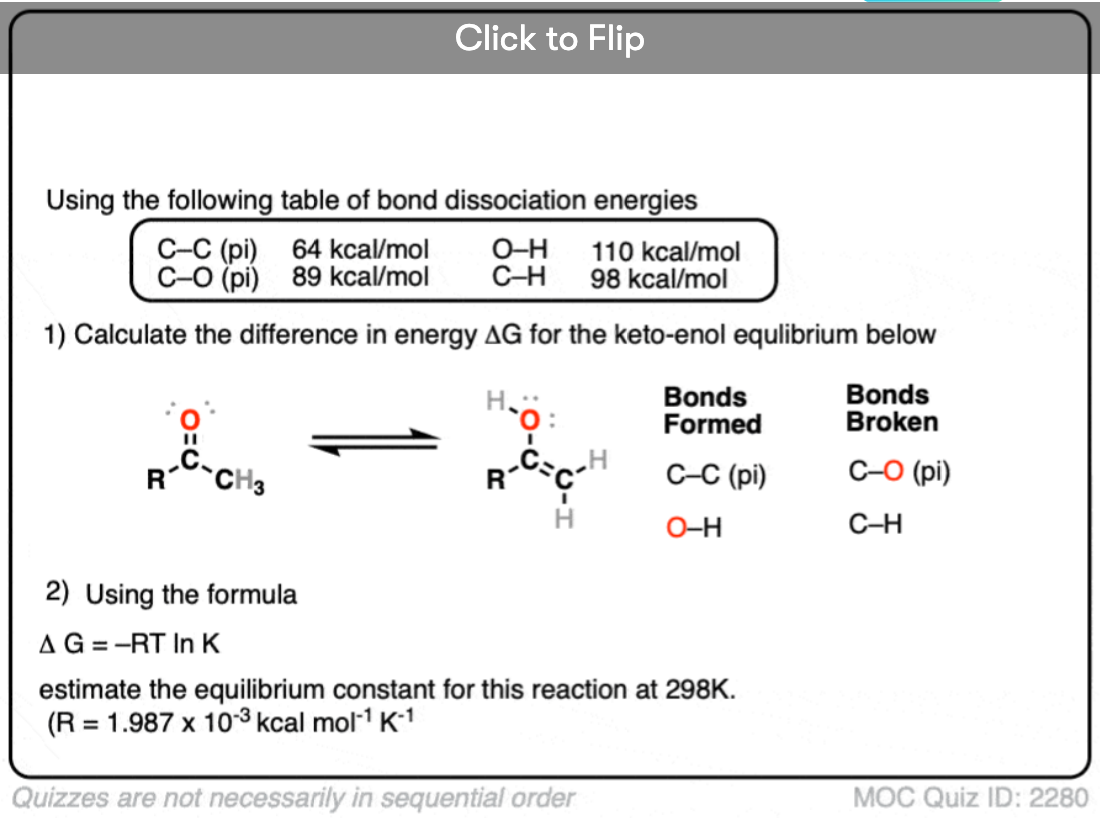

Note 7 – A quick tabulation of the bonds that form and break using average values for their bond dissociation energies reveals at least a 10 kcal/mol difference between the keto and enol tautomers in most cases favoring the keto. See this quiz for an example.

Note 8. The proportion of enol tautomer in a solution of ethyl acetate was found to be less than one part in 10 million – several orders of magnitude below that found for ketones.

Note 9. There is some solvent dependence on the keto:enol ratio. In a non hydrogen-bonding solvent (like carbon tetrachloride) the enol:keto ratio for ethyl acetoacetate was measured to be around 98:2 . In a hydrogen-bonding solvent like water, however, there is more “competition” for accepting a hydrogen bond, and the enol: keto ratio drops to about 1 : 4. (See Ref 5)

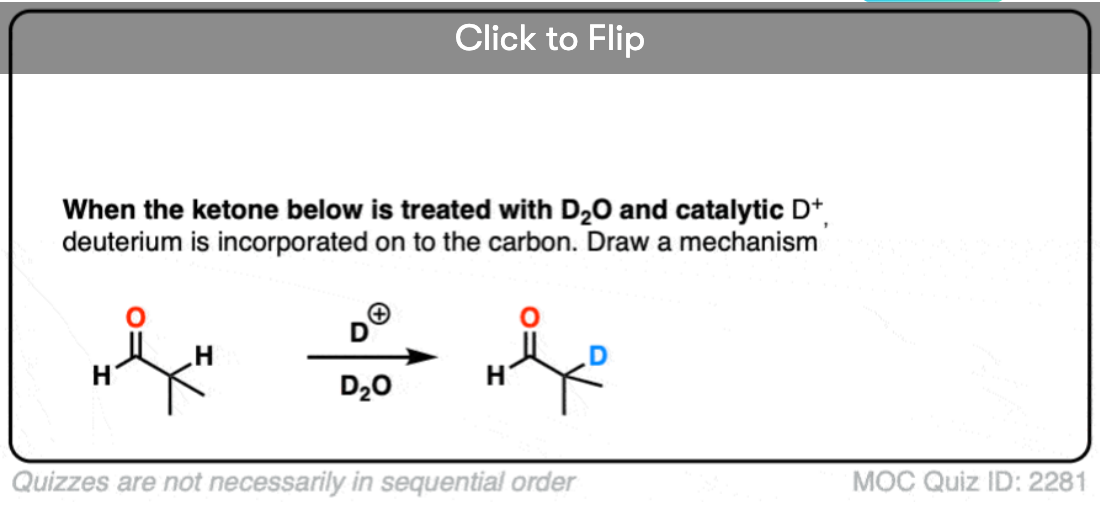

Quiz Yourself!

Click to Flip

Click to Flip

Click to Flip

Click to Flip

Click to Flip

Click to Flip

(Advanced) References and Further Reading

For a historical perspective on tautomerism, Structure and Mechanism in Organic Chemistry by C. K. Ingold is helpful.

For example, Ingold points to the coining of the term “tautomerism” by Laar (Berichte, 1885, 648 and Berichte, 1886, 19, 730) but mentions that Laar did not believe the keto and enol forms were separate species. [https://chemistry-europe.onlinelibrary.wiley.com/doi/abs/10.1002/cber.188601901165]

This was later conculsively established by separation of ethyl acetoacetonate into its ketonic and enolic components, which involved crystallizing the keto form at –80°C and showing it could be converted to the keto form (Berichte 1911, 44, 1138). Distillation of the pure (and more volatile) enol form was reported later (Berichte, 1921, 54, 579).

1. Mechanism of acid-catalyzed enolization of ketones
Gustav E. Lienhard and Tung-Chia Wang
Journal of the American Chemical Society 1969 91 (5), 1146-1153
DOI: 10.1021/ja01033a019

Study on the keto-enol equilibria of cyclohexanone  supports that the rate limiting step for acid-catalyzed enol → keto tautomerism is protonation of the beta-carbon (based on similarity of rates to those for hydrolysis of enol ethers). Rate-determining step for keto → enol tautomerism is deprotonation of carbon.

2. Tautomeric equilibria in acetoacetic acid
Karen D. Grande and Stuart M. Rosenfeld
The Journal of Organic Chemistry 1980 45 (9), 1626-1628
DOI: 10.1021/jo01297a017

From the abstract: “Tautomeric equilibria in acetoacetic acid have been examined by ¹H NMR and found to be strongly solvent dependent. Values for enol tautomer range from less than 2% in D₂O to 49% in CCl₄. Chemical shift data suggest that the enol tautomer is internally hydrogen bonded in the less polar solvents and that internal hydrogen bonding is unimportant for the keto tautomer.”

3. Generation of simple enols in aqueous solution from alkali metal enolates. Some chemistry of isobutyraldehyde enol
Y. Chiang, A. J. Kresge, and P. A. Walsh
Journal of the American Chemical Society 1986 108 (20), 6314-6320
DOI: 10.1021/ja00280a032

Gives an estimate for the equilibrium constant for keto-enol interconversion of isobutyraldehyde as K= 1.37 × 10^-4 , and estimates the pK_a of the enol form as 11.63 and the pK_a of the keto form as 15.49.

4. Kinetics and thermodynamics of keto-enol tautomerism of simple carbonyl compounds: an approach based on a kinetic study of halogenation at low halogen concentrations
Jacques Emile Dubois, Mohiedine El-Alaoui, and Jean Toullec
Journal of the American Chemical Society 1981 103 (18), 5393-5401
DOI: 10.1021/ja00408a020

Contains rate and equilibrium constants for the enolization of various ketones in aqueous solution (see Table 2, p. 5396), particularly cyclic alkanones and substituted acetophenones.

5. Solvent effects on keto-enol equilibria: tests of quantitative models
Sander G. Mills and Peter Beak
The Journal of Organic Chemistry 1985 50 (8), 1216-1224
DOI: 10.1021/jo00208a014

Interesting study on several different keto-enol tautomer pairs. Interesting note from the abstract: “In general, for the isomer pairs in which the enol cannot form an internal hydrogen bond, the equilibria appear to be controlled almost completely by the hydrogen-bonding basicity of the solvent” (emphasis mine).

6. Microwave spectroscopic study of malonaldehyde (3-hydroxy-2-propenal). 2. Structure, dipole moment, and tunneling
Steven L. Baughcum, Richard W. Duerst, Walter F. Rowe, Zuzana Smith, and E. Bright Wilson
Journal of the American Chemical Society 1981 103 (21), 6296-6303
DOI: 10.1021/ja00411a005

Malonaldehyde is the simplest beta-carbonyl aldehyde. This study uses microwave spectroscopy to ascertain the bond lengths in the internal hydrogen-bonded structure of the malonaldehyde enol tautomer.

7. Gas-phase acidities and heats of formation of 2,4- and 2,5-cyclohexadien-1-one, the keto tautomers of phenol
Christopher S. Shiner, Paul E. Vorndam, and Steven R. Kass
Journal of the American Chemical Society 1986 108 (19), 5699-5701
DOI: 10.1021/ja00279a006

The authors made the two keto tautomers of phenol in the gas phase (through a retro Diels-Alder reaction!) and studied their acidities and heats of formation. The heat of formation of the [2H]-tautomer of phenol is ca. 6 kcal/mol higher than that of phenol, whereas the heat of formation of the [4H]-tautomer is about 10 kcal/mol higher than phenol.
